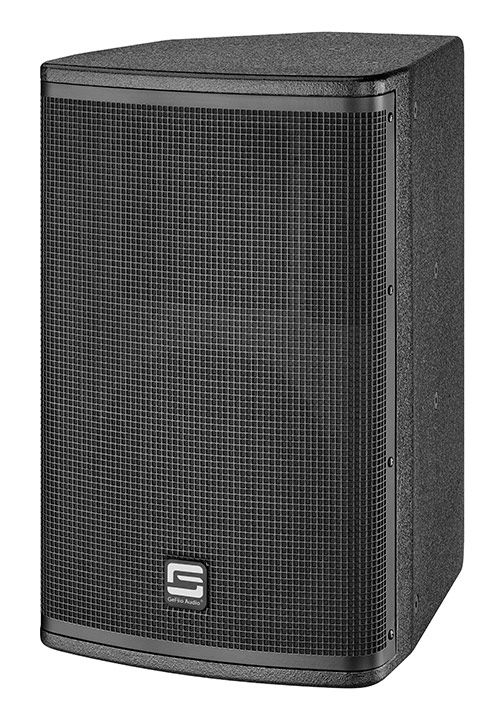

HY-10-12-15
| 型号 | HY-10 | HY-12 | HY-15 |
|---|---|---|---|
| 单元构造(Drivers) | HF:1×1.4"/LF:1×10" | HF:1×1.75"/LF:1×12" | HF:1×3"/LF:1×15" |
| 频率响应(Frequency response) | 60Hz-20KHz | 50Hz-20KHz | 45Hz-20KHz |
| 扩散角度(Coverage Angle) | 80°H× 50°V | 80°H× 50°V | 90°H× 50°V |
| 灵敏度(Sensitivity) | 95dB | 96dB | 98dB |
| 声压级(Output SPL) | 119dB | 120dB | 122dB |
| 额定功率(Rated power) | 260W | 350W | 450W |
| 峰值功率(Peak power) | 800W | 1100W | 1400W |
| 额定阻抗(Rated impedance) | 8Ω | 8Ω | 8Ω |
| 箱体尺寸(宽×深×高)(Box Size)（W×D×H） | W330mm×D330mm×H530mm | W361mm×D398mm×H615mm | W470mm×D500mm×H700mm |
| 重量(Weight) | 18KG | 21KG | 23KG |
