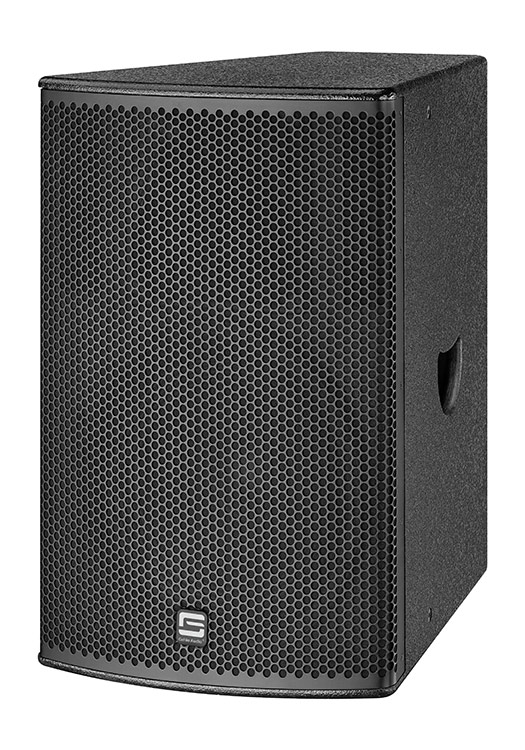

FM-12-15
| 型号 | FM-12 | FM-15 |
|---|---|---|
| 单元构造(Drivers) | HF:1×1.75"/LF:1×12" | HF:1×3"/LF:1×15" |
| 频率响应(Frequency response) | 40Hz-20KHz | 55Hz-20KHz |
| 扩散角度(Coverage Angle) | 90°H× 60°V | 90°H× 50°V |
| 灵敏度(Sensitivity) | 100dB | 100dB |
| 声压级(Output SPL) | 129dB | 128dB |
| 额定功率(Rated power) | 600W | 600W |
| 峰值功率(Peak power) | 1800W | 1800W |
| 额定阻抗(Rated impedance) | 8Ω | 8Ω |
| 箱体尺寸(宽×深×高)(Box Size)（W×D×H） | W360mm×D420mm×H600mm | W470mm×D500mm×H700mm |
| 重量(Weight) | 23KG | 25KG |
