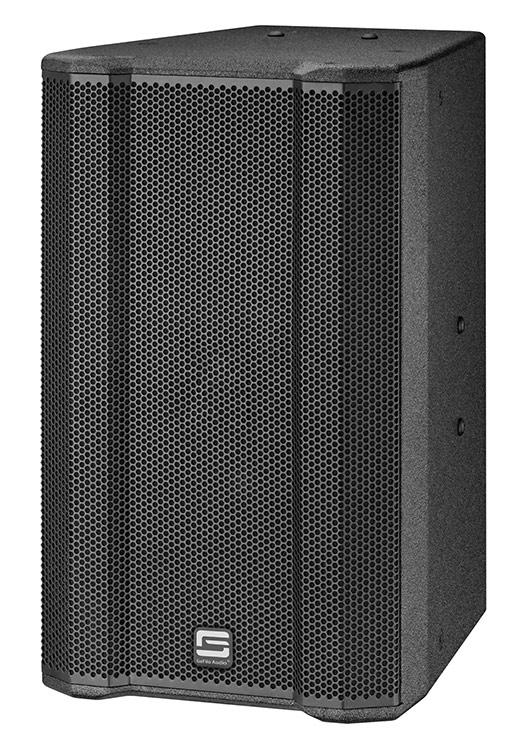

C4-10-12
| 型号 | C4-10 | C4-12 |
|---|---|---|
| 单元构造(Drivers) | HF:1×1.35"/ LF:1×10" | HF:1×1.75"/LF:1×12" |
| 频率响应(Frequency response) | 45Hz-20KHz | 40Hz-20KHz |
| 扩散角度(Coverage Angle) | 90°H× 60°V | 90°H× 60°V |
| 灵敏度(Sensitivity) | 97dB | 100dB |
| 声压级(Output SPL) | 125dB | 129dB |
| 额定功率(Rated power) | 400W | 500W |
| 峰值功率(Peak power) | 1200W | 1600W |
| 额定阻抗(Rated impedance) | 8Ω | 8Ω |
| 箱体尺寸(宽×深×高)(Box Size)（W×D×H） | W330mm×D330mm×H530mm | W360mm×D420mm×H600mm |
| 重量(Weight) | 20KG | 23KG |
