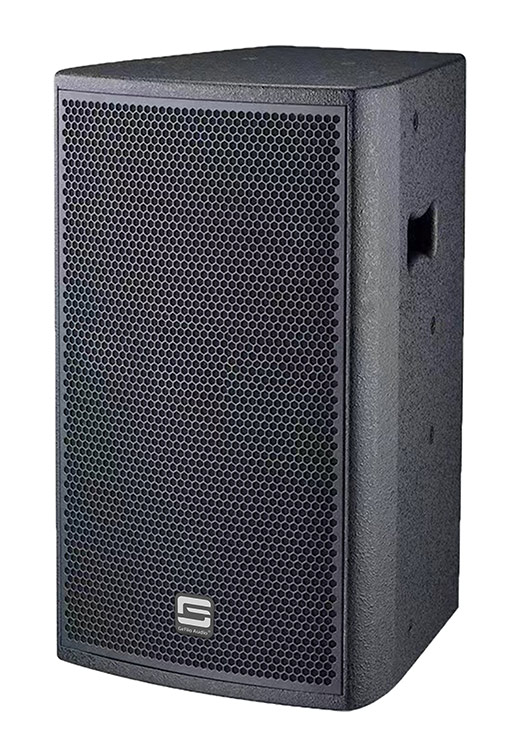

BM-10-12
| 型号 | BM-10 | BM-12 |
|---|---|---|
| 单元构造(Drivers) | HF:1×1.35"/ LF:1×10" | HF:1×1.75"/LF:1×12" |
| 频率响应(Frequency response) | 58Hz-20KHz | 50Hz-20KHz |
| 扩散角度(Coverage Angle) | 90°H× 60°V | 90°H× 60°V |
| 灵敏度(Sensitivity) | 95dB | 97dB |
| 声压级(Output SPL) | 122dB | 126dB |
| 额定功率(Rated power) | 350W | 500W |
| 峰值功率(Peak power) | 1050W | 1500W |
| 额定阻抗(Rated impedance) | 8Ω | 8Ω |
| 箱体尺寸(宽×深×高)(Box Size)（W×D×H） | W330mm×D335mm×H530mm | W351mm×D398mm×H615mm |
| 重量(Weight) | 19KG | 21KG |
